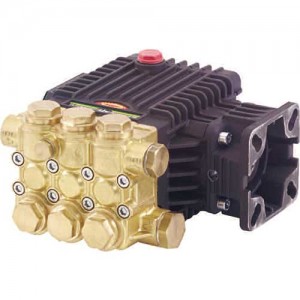

GP TC1506G Pressure Washer Pump 2700 PSI 2.6 GPM by General Pump

Product Code: TC1506G

Availability: Factory-Direct

Zoom

Price: $524.00

(0/5)

Qty:

Images are for illustrative purposes only - the actual products may differ.

FREE GROUND SHIPPING On all pressure washers

TAX-FREE All states

Authorized dealer All items are covered by manufacturer's warranty

Description Reviews (0)

3400 RPM 3/4â Hollow shaft with SAE J609 Gasoline Engine Flange

Specifications

Manufacturer - model	General Pump - TC1506G
Grade	Triplex Plunger Pump
Max GPM	2.6
Max PSI	2700
Inlet Port	1/2â - 14 BSP-F
Discharge Port	1/4-19 BSPP-F
Speed	3400
Flange / Shaft	3/4â Hollow shaft with SAE J609 Gasoline Engine Flange
Bore (mm)	15
Stroke (mm)	6.5
Max LMP	9.828
Max Bar	186.3
Power EBHP	4.82
Oil Capacity	11.8 oz
Max Inlet Temperature	165Â°F
Pump dimensions L x W x H (in.)	x x
Ship weight:	14.6 lbs / 6.62 kg
Warranty	Limited 1 year

Download documents:

TC1506G Pressure washer pump datasheet
