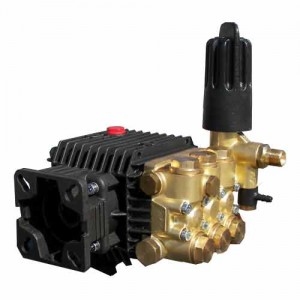

GP 2500 PSI 2.6 GPM Replacement Pressure Washer Pump

Product Code: TP2526J34UFIL
Availability: Factory-Direct
Price: $325.00

Images are for illustrative purposes only - the actual products may differ.

+ FREE GROUND SHIPPING On all pressure washers
+ TAX-FREE All states
+ Authorized dealer All items are covered by manufacturer's warranty

Specifications

Manufacturer - model General Pump - TP2526J34UFIL
Grade Solid ceramic plungers with continuously lubricated packings; Pump TP2526J34UFIL
Max GPM 2.6
Max PSI 2500
Inlet Port 3/8-19 BSPP-F
Discharge Port 1/4-19 BSPP-F
Speed 3400
Flange / Shaft SAE J609 gasoline engine mounting flange / Horizontal Shaft; Gas Flange /
Shaft diameter 3/4”
Bore (mm) 15mm
Stroke (mm) 6.6mm
Max LMP 9.828
Max Bar 172.5
Power EBHP 4.46122168840082
Oil Capacity 11.0 oz.
Max Inlet Temperature 165°F
Pump dimensions L x W x H (in.) x x
Ship weight:
Warranty Limited 1 year

Download documents:

TP2526J34UFIL Pressure washer pump datasheet
