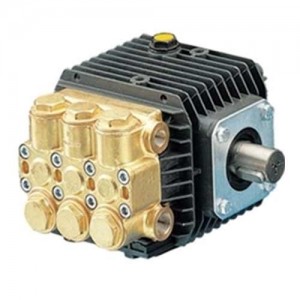

GP TT9111 Pressure Washer Pump 1500 PSI 3 GPM by General Pump

Product Code: TT9111

Availability: Factory-Direct

Zoom

Price: $503.00

(0/5)

Qty:

Images are for illustrative purposes only - the actual products may differ.

FREE GROUND SHIPPING On all pressure washers

TAX-FREE All states

Authorized dealer All items are covered by manufacturer's warranty

Description Reviews (0)

1750 RPM 24mm Solid shaft with Pulley mount or direct drive with flex coupler and bell housing

Specifications

Manufacturer - model	General Pump - TT9111
Grade	Triplex Plunger Pump with Solid ceramic plungers
Max GPM	3
Max PSI	1500
Inlet Port	3/8-19 BSPP-F
Discharge Port	1/4-19 BSPP-F
Speed	1750
Flange / Shaft	24mm Solid shaft with Pulley mount or direct drive with flex coupler and bell housing
Bore (mm)	18
Stroke (mm)	9.4
Max LMP	11.34
Max Bar	103.5
Power EBHP	3.09
Oil Capacity	11.2 oz.
Max Inlet Temperature	165Â°F
Pump dimensions L x W x H (in.)	x x
Ship weight:	11.2 lbs / 5.08 kg
Warranty	Limited 1 year

Download documents:

TT9111 Pressure washer pump datasheet
